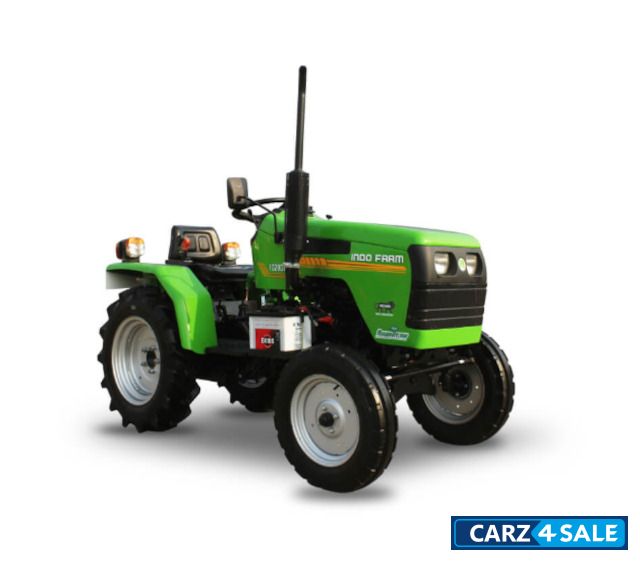

Indo Farm 1020 DI Tractor price, specs, mileage, colours, photos and reviews

Complete details of 1020 DI Tractor Tractor

Rate Indo Farm 1020 DI Tractor:

4.0/5 (2 votes)

Add To Compare
Write a Review

Indo Farm 1020 DI Tractor Price

Not Available

Offers for Indo Farm 1020 DI Tractor

Book a Test Drive through Carz4Sale and we will try to get you the best discount for Indo Farm 1020 DI Tractor.

For Exciting Offers, Book a Test Drive

Features

- Adjustable Driver's Seat
- Heavy 500 KGs Lift
- Oil Immersed Brakes

Similar Tractors

Mahindra Tractors JIVO 245 DI 4WD Tractor Compare

Mahindra Tractors JIVO 225 DI 4WD Tractor Compare

New Holland 6500 Turbo Super Tractor Compare

New Holland Excel 6510 Tractor Compare

New Holland 5620 TX Plus 4WD Tractor Compare

New Holland 5620 TX Plus 2WD Tractor Compare

Indo Farm Dealers

Indo Farm Equipment

Export Promotion Industrial Park, Phase-II, Baddi, Himachal Pradesh

Contact Dealer

More Dealers

View all Indo Farm Showrooms

View All Showrooms

Technical Specifications

Vehicle Type	Tractor
Fuel	Diesel
Engine Details	Field Marshal, Four Stroke DI Engine, 1 Cylinders
Engine Starting	Self Starter Motor & Alternator
Bore x Stroke	100mm x 114mm
Clutch	Single Clutch
Cooling System	Water cooled
Maximum Power	20 HP
Transmission	No. of Gear Speeds : 6 Forward 2 Reverse

Electricals
Battery	12 Volts-65 Ah-Battery

Brakes
Front Brake	Oil immersed multiple discs
Rear Brake	Oil immersed multiple discs

Tyres
Front Tyre	5.20 x 14
Rear Tyre	8.00 x 18

Dimensions
Length	2520 mm
Width	1050 mm
Height	1240 mm
Weight	800 kg
Ground Clearance	210 mm

Additional Details
Rated Speed : 2300 RPM Max. Torque Speed : 1200 + 1400 RPM Air Cleaner : Oil Bath Type Hyd. Pump : Gear Type Lifting Capacity : 500 kg at Lower Link Ends Wheel Track : Front : 940 , Rear : 830 PTO Power (ps) : 12.92@2300 Engine RPM No. of Suplines : 6 PTO Speed : 540@2100 RPM Steering : Mechanical - Recirculating ball type (optional) Steering wheel dia : 380 mm Min. Turning radius : 2.2 m Parking : Through hand lever, by locking brake pedals

Additional Details

Rated Speed : 2300 RPM
Max. Torque Speed : 1200 + 1400 RPM
Air Cleaner : Oil Bath Type
Hyd. Pump : Gear Type
Lifting Capacity : 500 kg at Lower Link Ends
Wheel Track : Front : 940 , Rear : 830
PTO Power (ps) : 12.92@2300 Engine RPM
No. of Suplines : 6
PTO Speed : 540@2100 RPM
Steering : Mechanical - Recirculating ball type (optional)
Steering wheel dia : 380 mm
Min. Turning radius : 2.2 m
Parking : Through hand lever, by locking brake pedals
