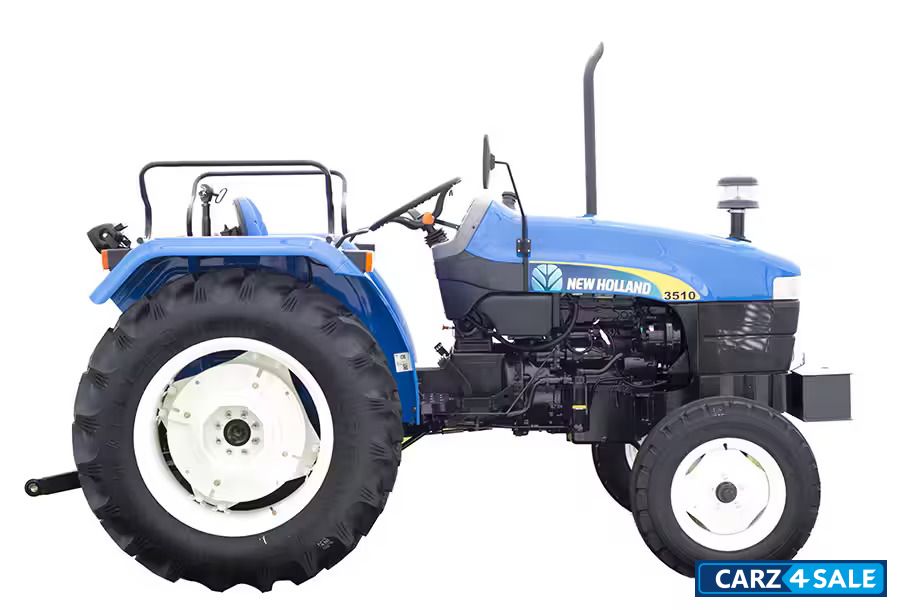

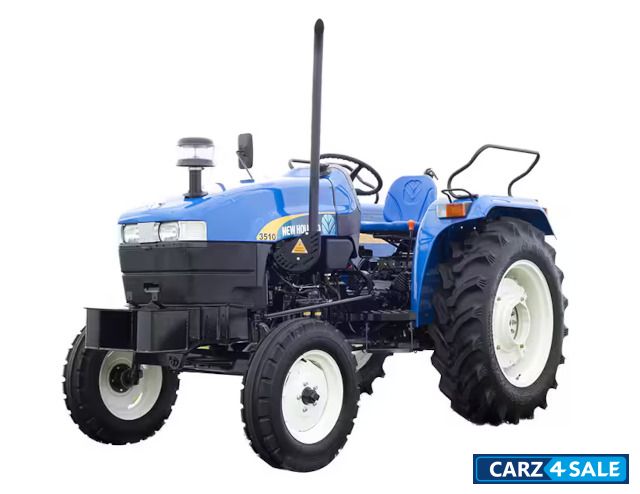

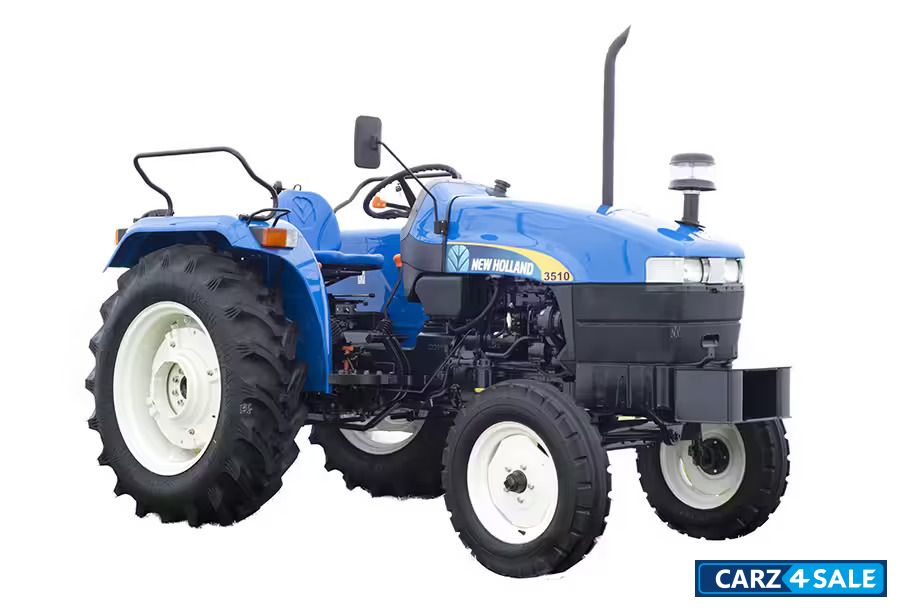

New Holland 3510 Tractor

Complete details of 3510 Tractor Tractor

Rate New Holland 3510 Tractor:
4.0/5 (2 votes)
Add To Compare
Write a Review
New Holland 3510 Tractor Price

Rs. 5,20,000

Offers for New Holland 3510 Tractor

Book a Test Drive through Carz4Sale and we will try to get you the best discount for New Holland 3510 Tractor.

For Exciting Offers, Book a Test Drive
+91-
By submitting, you agree to our Terms & Conditions.
1002
Features
- Max useful power - 33hp PTO Power & 27.1hp Drawbar Power
- 540 Standard, 540 Economy*, Reverse PTO & Ground Speed PTO
- Independent PTO Clutch Lever
- Diaphragm Clutch in Single Clutch
- Constant Mesh AFD
- Lift-O-Matic & 1500 KG Lift Capacity
- Multisensing with DRC Valve
- Straight Axle Planetary Drive

SAFETY
- Super Deluxe Seat
- Fan Belt Guard
- Neutral Safety Switch
- Clutch Safety Lock
- Frame & Canopy
- Mobile Charging Port
Technical Specifications
Vehicle TypeTractor
FuelDiesel
Engine Displacement2365.00 cc
Engine Details3 Cylinders
ClutchSingle
Maximum Power35 HP @ 2000 Rpm
TransmissionFully Constant Mesh AFD
No. of Gears : 8F+2R
Electricals
Battery75 Ah
Brakes
Front BrakeMechanical, Real Oil Immersed Brakes
Rear BrakeMechanical, Real Oil Immersed Brakes
Chassis and Suspension
Frame
Tyres
Wheels / Rim
Front Tyre6.0 x 16*(0.152m x 0.406 m)
Rear Tyre13.6 x 28*(0.345m x 0.711m)
Dimensions
Length x Width x Height3410 x 1690 x -- mm
Wheelbase1920 mm
Weight1770 kg
Ground Clearance366 mm
Fuel Tank Capacity62 litres
Additional Details
Air cleaner : Oil Bath with Pre Cleaner
Road Speed @ Rated RPM : 2.54-28.16
Reverse Speed (Kmph) : 3.11-9.22
Steering : Mechanical/Power
Final Drive : Straight Axle Planetary Drive
Styling : NH1 Styling

PTO
PTO HP@rated RPM : 33
PTO Speeds - Standard : Yes
PTO Speeds - Economy : Yes
PTO Speeds - Reverse : Yes
PTO Speeds - Ground Speed : Yes

Hydraulics
Lift Capacity (kg) : 1500kg at 3 point Linkage
Sensing : Multi sensing Point
DRC Valve : Yes
Lift-O-Matic : Yes
Tipping Trailer Pipe : Yes
