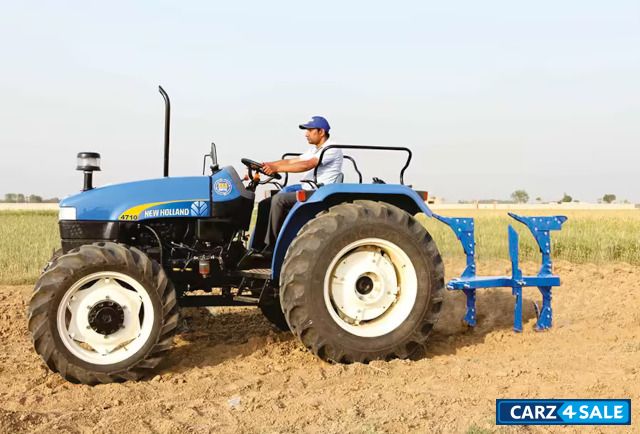

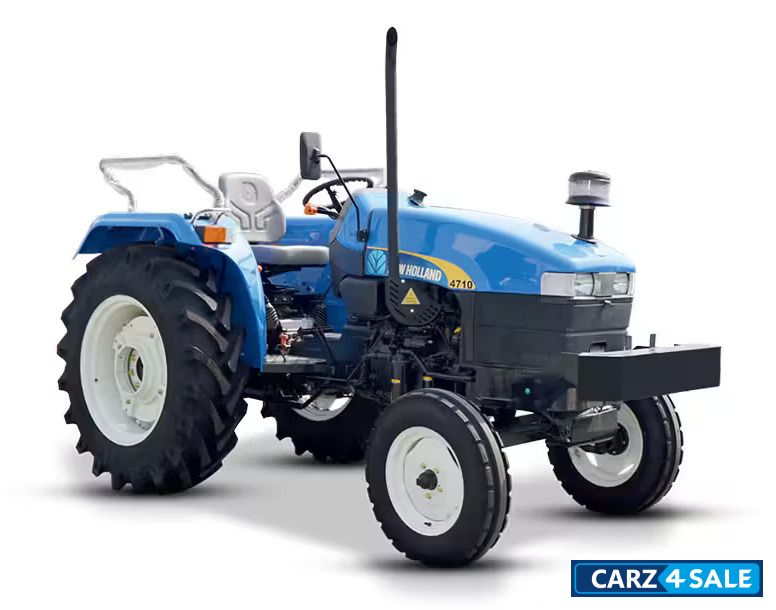

New Holland 4710 4WD Tractor

Complete details of 4710 4WD Tractor Tractor

Rate New Holland 4710 4WD Tractor:
4.0/5 (2 votes)
Add To Compare
Write a Review
New Holland 4710 4WD Tractor Price

Not Available

Offers for New Holland 4710 4WD Tractor

Book a Test Drive through Carz4Sale and we will try to get you the best discount for New Holland 4710 4WD Tractor.

For Exciting Offers, Book a Test Drive
+91-
By submitting, you agree to our Terms & Conditions.
6617
Features
- Max useful power - 43hp PTO Power & 38.32hp Drawbar Power
- Independent PTO lever
- Diaphram Clutch in Single Clutch
- Fully Constant Mesh AFD
- Lift-O-Matic & 1500 KG Lift Capacity
- Multisensing with DRC Valve
- Straight Axle Planetary Drive
- 8+8 Synchro Shuttle
- Min turning radius - 4.2mt (4WD)

ULTRA COMFORT & SAFETY
- Super Deluxe Seat
- Fan Belt Guard
- Neutral Safety Switch
- Clutch Safety Lock
- Frame & Canopy
- Mobile Charging Port
Technical Specifications
Vehicle TypeTractor
FuelDiesel
Engine Displacement2700.00 cc
Engine Details3 Cylinder
ClutchSingle/Double
Maximum Power47 HP @ 2250 Rpm
Maximum Torque167.9 Nm
TransmissionFully Constantmesh AFD
No. of Gears : 8F+2R/ 8+8 Synchro Shuttle
Electricals
Battery75Ah
Brakes
Front BrakeMechanical, Real Oil Immersed Brakes
Rear BrakeMechanical, Real Oil Immersed Brakes
Chassis and Suspension
Frame
Tyres
Wheels / Rim
Front Tyre9.5 x 24
Rear Tyre13.6x28/14.9x28
Dimensions
Length x Width x Height3400 x 1740 x -- mm
Wheelbase2005 mm
Weight2255 kg
Ground Clearance370 mm
Fuel Tank Capacity62 litres
Additional Details
Air Cleaners : Oil Bath with Pre-Cleaner
PTO Clutch : Yes
Road Speed @ Rated RPM : 3.00-33.24 (8+2) / 2.93-32.52 (8+8)
Reverse Speed (Kmph) : 3.68-13.34 (8+2) / 3.10-34.36 (8+8)
Steering : Power Steering/Mechanical
Final Drive : Straight Axle - Planetary Drive
Styling : NH1 Styling

PTO
PTO HP@rated RPM : 43
PTO Speeds - Standard : Yes
PTO Speeds - Economy : Yes
PTO Speeds - Reverse : Yes
PTO Speeds - Ground Speed : Yes

Hydraulics
Lift Capacity (Kg) : 1500 Kg at 3 point Linkage
Sensing : Lift-O-Matic & Multi Sensing Point
DRV Valve : Yes
Lift-O-Matic : Yes
Tipping Trailer Pipe : Yes
Remote Valve : Yes
