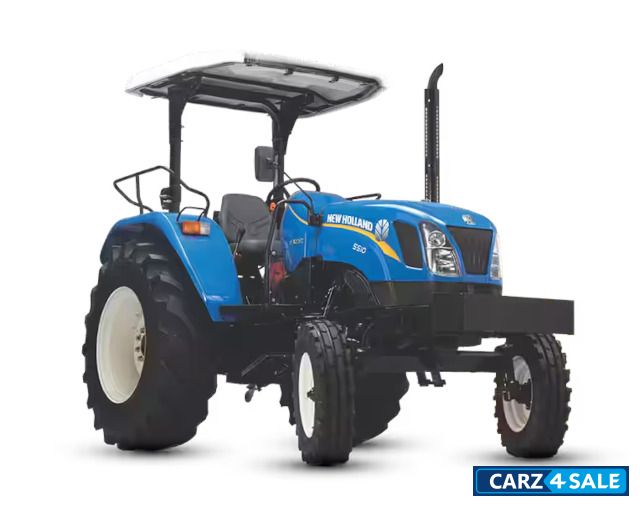

Complete details of Excel 5510 Tractor Tractor
Rate New Holland Excel 5510 Tractor:
New Holland Excel 5510 Tractor Price
Offers for New Holland Excel 5510 Tractor
Book a Test Drive through Carz4Sale and we will try to get you the best discount for New Holland Excel 5510 Tractor.
For Exciting Offers, Book a Test Drive
Features
- Paddy Suitability - Double Metal face sealing
- Flat deck platform
- Skywatch
- ROPS & Canopy
- PTO Options - 1000 PTO
- GSPTO
- FPT Engine- 49.5 HP
- Double Clutch with Independent PTO Lever
- 12F + 12R / 20F + 20R* Creeper / 24F + 24R* Splitter Gearbox
- Fully Synchromesh with Mechanical Shuttle
- Sensomatic24 with 24 sensing points
- Lift-O-Matic with Height Limiter
- ROPS & Canopy
- Sky Watch
Technical Specifications
| Vehicle Type | Tractor |
| Fuel | Diesel |
| Engine Displacement | 2931.00 cc |
| Engine Details | 3 Cylinder |
| Bore x Stroke | 104mm x 115mm |
| Clutch | Double Clutch with Independent PTO Lever |
| Maximum Power | 49.5 HP @ 2100 Rpm |
| Transmission | Fully Synchromesh Mech & Power Shuttle option
No. of Speeds : 8+8 / 12+12 / 20+20 / 24+24 |
| Drivetrain | 2WD / 4WD (MHD Axle) |
| Brakes |
|---|
| Front Brake | Mech. Actuated OIB & Hyd Actuated OIB |
| Rear Brake | Mech. Actuated OIB & Hyd Actuated OIB |
| Tyres |
|---|
| Front Tyre | 7.50x16 / 6.50x16 |
| Rear Tyre | 16.9x28 |
| Dimensions |
|---|
| Length | 3860 mm |
| Width | 2010 mm |
| Height | 2465 mm |
| Wheelbase | 2080 mm |
| Weight | 2510 kg |
| Ground Clearance | 310 mm |
| Fuel Tank Capacity | 100 litres |
| Additional Details |
Styling : Cat eyes International styling with Quadra AFT
PTO Power (HP) : 46
Air Clear Type : Dry Type Air Cleaner
PTO : 540, 540E & RPTO
Final Drive : Planetary Reduction
Lift Capacity : F - 1.40-32.71kmph; R - 1.66-38.76kmph
Lift-o-matic : Lift-O-Matic with Height Limiter
Hydraulic Sensitivity : Sensomatic24 Hydraulic with 24 sensing points
Remote Valve : Upto 6 Remote Valve
Track width - Front with Range, (mm) : 1470 std (1510 - 1710 for field)
Track width - Rear with Range, (mm) : 1560 std (1620 - 1935 for field) |
