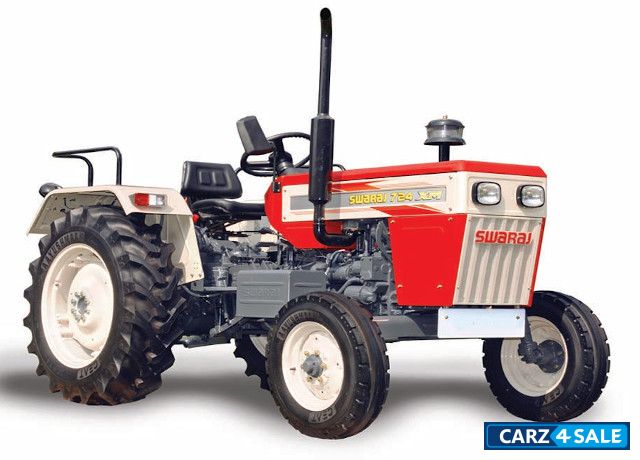

Complete details of 724 XM Tractor Tractor
Rate Swaraj 724 XM Tractor:
Swaraj 724 XM Tractor Price
Offers for Swaraj 724 XM Tractor
Book a Test Drive through Carz4Sale and we will try to get you the best discount for Swaraj 724 XM Tractor.
For Exciting Offers, Book a Test Drive
Features
- QRC With Tap Off Pipe
- Stabilizers Bar
- Steering Lock
- Straight Front Axle
Technical Specifications
| Vehicle Type | Tractor |
| Fuel | Diesel |
| Engine Displacement | 1824.00 cc |
| Engine Details | 2 Cylinders, 4 Stroke, |
| Bore x Stroke | 100mm x 116mm |
| Clutch | Clutch Standard : Single dry disc friction plate |
| Fuel System | Direct injection |
| Maximum Power | 25 PS @ 1800 Rpm |
| Transmission | No. of Gears : 8 Forward, 2 Reverse speeds
Forward : 2.19 to 27.78
Reverse : 2.74 & 10.77 |
| Motor Details |
| Starter motor & Alternator |
| Electricals |
|---|
| Battery | 12 Volt, 88 Ah. Battery |
| Brakes |
|---|
| Front Brake | Dry Disc type Brakes |
| Rear Brake | Dry Disc type Brakes |
| Tyres |
|---|
| Front Tyre | 6.00 x 16 |
| Rear Tyre | 12.4 x 28 |
| Dimensions |
|---|
| Length | 3320 mm |
| Width | 1675 mm |
| Height | 2270 mm |
| Wheelbase | 1935 mm |
| Weight | 1750 kg |
| Ground Clearance | 375 mm |
| Additional Details |
Model : RV-2 XM + 3A
Air Cleaner : 3- Stage Oil Bath Type
Cooling System : Water Cooled with No loss tank
PTO Speed : Standard 1000 rpm
PTO Speed : Optional 540 rpm
Steering Type : Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator
Lifting Capacity : 1000 Kgf at lower link ends
Linkage : 3 point linkage suitable for Category-I&II type implement pins
Live Hydraulics :
A) Position control : To hold lower links at any desired height
B) Automatic draft control :To maintain uniform depth
c) Mix Control : For optimum field output
Instruments : Engine rpm cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator |
