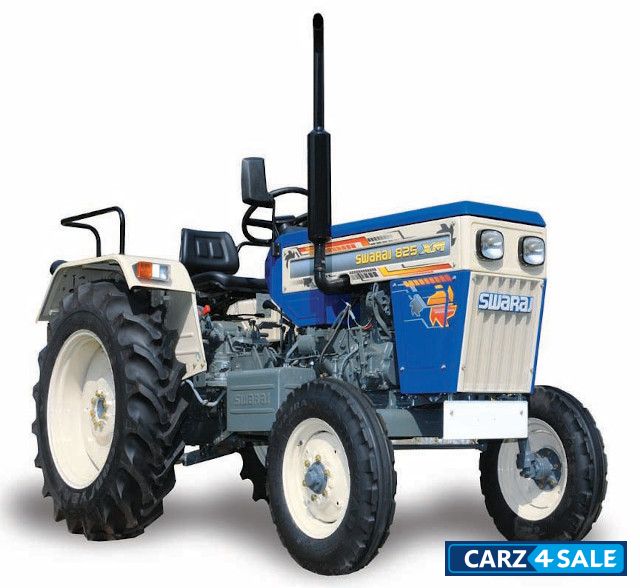

Swaraj 825 XM Tractor

Complete details of 825 XM Tractor Tractor

Rate Swaraj 825 XM Tractor:
3.0/5 (1 vote)
Swaraj 825 XM Tractor Price

Rs. 3,40,000

Offers for Swaraj 825 XM Tractor

Book a Test Drive through Carz4Sale and we will try to get you the best discount for Swaraj 825 XM Tractor.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
- Isolator Valve
- Straight Front Axle
- Stabilizers Bar
- Better Ergonomics
- Steering Lock
Technical Specifications
Vehicle TypeTractor
Engine Displacement1538.00 cc
Engine Details1 Cylinders, 4 Stroke
Bore x Stroke120mm x 136mm
ClutchSingle dry disc friction plate
Fuel SystemDirect injection
Maximum Power20 Ps @ 1650 Rpm
TransmissionNo. of Gears : 8 Forward, 2 Reverse speeds
Forward : 3.3 to 30.4
Reverse : 2.9 & 9.6
Motor Details
Starter motor & Alternator
Battery12 Volt, 88 Ah Battery
Front BrakeDry Disc type Brakes
Rear BrakeDry Disc type Brakes
Front Tyre6.00 x 16
Rear Tyre12.4 x 28
Length3260 mm
Width1690 mm
Height2395 mm
Wheelbase1930 mm
Weight1870 kg
Ground Clearance400 mm
Additional Details
Model : S-15 XM
Air Cleaner : 3- Stage Oil Bath Type
Cooling System : Water Cooled with No loss tank
PTO Speed : Standard 1000 rpm
PTO Speed : Optional 540 rpm
Lifting Capacity : 1000 Kgf at lower link ends.
Linkage : 3 point linkage suitable for Category- I & II type implement pins
Steering Type : Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator
Instruments : Engine rpm cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator
Live Hydraulics
A) Position control : To hold lower links at any desired height
B) Automatic draft control :To maintain uniform depth
c) Mix Control : For optimum field output
