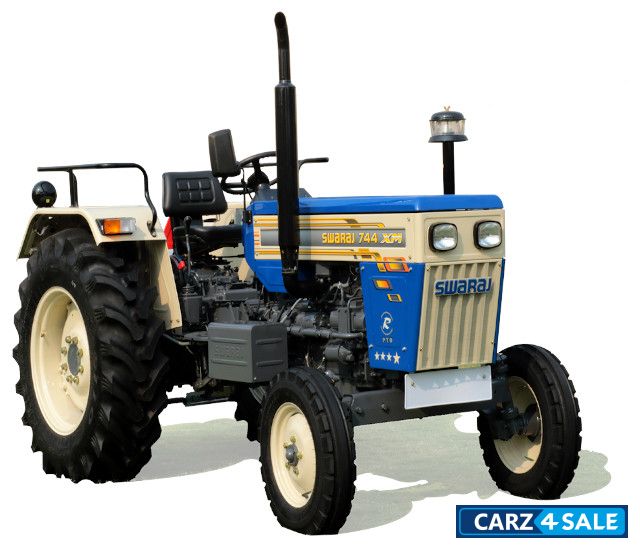

Swaraj 744 XM Tractor price, specs, mileage, colours, photos and reviews

Complete details of 744 XM Tractor Tractor

Rate Swaraj 744 XM Tractor:

3.0/5 (2 votes)

Add To Compare
Write a Review

Swaraj 744 XM Tractor Price

Rs. 6,50,000

Offers for Swaraj 744 XM Tractor

Book a Test Drive through Carz4Sale and we will try to get you the best discount for Swaraj 744 XM Tractor.

For Exciting Offers, Book a Test Drive

Features

- Constant Mesh Side Shift Gear Box
- Higher Capacity Sensi Lift Hydraulics

Similar Tractors

New Holland Excel 5510 Tractor Compare

New Holland 3600-2 Excel Tractor Compare

New Holland 3600-2 TX Super Tractor Compare

New Holland 3600 TX Super Heritage Edition Tractor Compare

Standard DI-355 Tractor Compare

Standard DI-345 Tractor Compare

Swaraj Dealers

VRS COLONIZERS & INFRADEVELOPERS

VIL AND POST KANERI, RAJATALAB ROAD Uttar Pradesh

Contact Dealer

JAGDISH ENTERPRISES

IN FRONT OF MANDI SAMITI, ETAH ROAD, TUNDLA Uttar Pradesh

Contact Dealer

B.K.C TRACTORS

NEAR NAGAR PANCHAYAT OFFICE, BAUDH NAGAR, TIRWA Uttar Pradesh

Contact Dealer

GOVIND DAS AUTOMOBILES

NEAR BUS STAND, VILLAGE & POST TEHROULI Uttar Pradesh

Contact Dealer

PURVANCHAL TRACTORS

NEAR NAVJEEVAN MISSION SCHOOL, PAKADIYAR PURAB PATTI, TAMKHUI ROAD, TAMKHUI RAJ Uttar Pradesh

Contact Dealer

VIVEK TRACTORS

MAIN ROAD, TALBEHAT Uttar Pradesh

Contact Dealer

More Dealers

View all Swaraj Showrooms

View All Showrooms

Technical Specifications

Vehicle Type	Tractor
Fuel	Diesel
Engine Displacement	3307.00 cc
Engine Details	3 Cylinders, 4 - Stroke
Bore x Stroke	110mm x 116mm
Clutch	Dual Clutch
Fuel System	Direct Injection
Maximum Power	45 Ps @ 1800 Rpm
Transmission	No. of Gears : 8 Forward, 2 Reverse speeds , Side shift levers Forward : 2.6 to 29.6 Reverse : 2.6 & 10.4

Motor Details
Starter motor & Alternator

Electricals
Battery	12 Volt, 88 Ah

Brakes
Front Brake	Oil Immersed Brakes
Rear Brake	Oil Immersed Brakes

Tyres
Front Tyre	6.00 x 16
Rear Tyre	13.6 x 28

Dimensions
Length	3555 mm
Width	1730 mm
Height	2290 mm
Wheelbase	2140 mm
Weight	2080 kg
Ground Clearance	400 mm

Additional Details
Model : RB-30 XM Plus Air Cleaner : 3- Stage Oil Bath Type Cooling System : Water Cooled with No loss tank. Oil Cooler for engine oil PTO Speed : Standard 540 rpm PTO Speed : Optional 540 rpm & CR-PTO with multi speeds Lifting Capacity : 1700 Kgf at lower link ends. Linkage : 3 point linkage suitable for Category-I & II type implement pins. Steering Type : Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator Instruments : Engine rpm cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator. Live Hydraulics : 2 Levers (PC/DC) & One Toggle Switch live hydraulic system having automatic position & draft with mix control A) Position control : To hold lower links at any desired height. B) Automatic draft control : To maintain uniform depth C) Mix Control : For optimum field output D)Toggle switch : To maintain the same implement level in field during cultivation

Additional Details

Model : RB-30 XM Plus
Air Cleaner : 3- Stage Oil Bath Type
Cooling System : Water Cooled with No loss tank. Oil Cooler for engine oil
PTO Speed : Standard 540 rpm
PTO Speed : Optional 540 rpm & CR-PTO with multi speeds
Lifting Capacity : 1700 Kgf at lower link ends.
Linkage : 3 point linkage suitable for Category-I & II type implement pins.
Steering Type : Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator
Instruments : Engine rpm cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator.
Live Hydraulics : 2 Levers (PC/DC) & One Toggle Switch live hydraulic system having automatic position & draft with mix control
A) Position control : To hold lower links at any desired height.
B) Automatic draft control : To maintain uniform depth
C) Mix Control : For optimum field output
D)Toggle switch : To maintain the same implement level in field during cultivation
