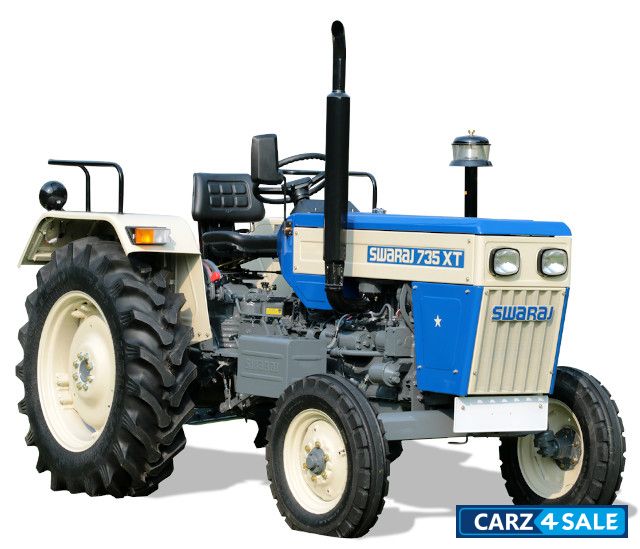

Swaraj 735 XT Tractor

Complete details of 735 XT Tractor Tractor

Rate Swaraj 735 XT Tractor:
3.5/5 (2 votes)
Add To Compare
Write a Review
Swaraj 735 XT Tractor Price

Rs. 5,50,000

Buy new Swaraj 735 XT Tractor

Book a Test Drive through Carz4Sale and we will try to get you the best offer for Swaraj 735 XT Tractor.

For Exciting Offers, Book a Test Drive
2137
Features
- Easy Side Gear
- Higher Capacity Sensi Lift Hydraulics
- Diaphragm Type Single Clutch (Dia-280 mm/305 mm)
- Low Force Hydraulic Levers
- Isolator Valve
- Taper Front Axle
Similar Tractors
Technical Specifications
Vehicle TypeTractor
FuelDiesel
Engine Displacement2734.00 cc
Engine Details3 Cylinders, 4 Stroke
Bore x Stroke100mm x 116mm
ClutchSingle dry disc friction plate - 280 mm dia. (11”)
Single dry disc friction plate – 305 mm dia (12”)
Fuel SystemDirect injection
Maximum Power38 Ps @ 1800 Rpm
TransmissionNo. of Gears : 8 Forward, 2 Reverse speeds, Side shift levers
Forward : 2.20 to 28.50
Reverse : 2.70 & 10.50
Motor Details
Starter motor & Alternator
Electricals
Battery12 Volt, 88 Ah
Brakes
Front BrakeOil Immersed Brakes
Rear BrakeOil Immersed Brakes
Chassis and Suspension
Frame
Tyres
Wheels / Rim
Front Tyre6.00 x 16
Rear Tyre13.6 x 28
Dimensions
Length x Width x Height3385 x 1730 x 2285 mm
Wheelbase1925 mm
Weight1930 kg
Ground Clearance385 mm
Additional Details
Model : RV-3 XM+ 3A
Air Cleaner : 3- Stage Oil Bath Type
Cooling System : Water Cooled with No loss tank
PTO Speed : Standard 540 rpm
Lifting Capacity : 1200 Kgf at lower link ends.
Linkage : 3 point linkage suitable for Category-I&II type implement pins
Steering Type : Mechanical Steering with Heavy Duty single drop arm for better manoeuvrability & comfort to operator
Instruments : Engine rpm cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator.
Live Hydraulics :
A) Position control: To hold lower links at any desired height.
B) Automatic draft control :To maintain uniform depth
c) Mix Control : For optimum field output
