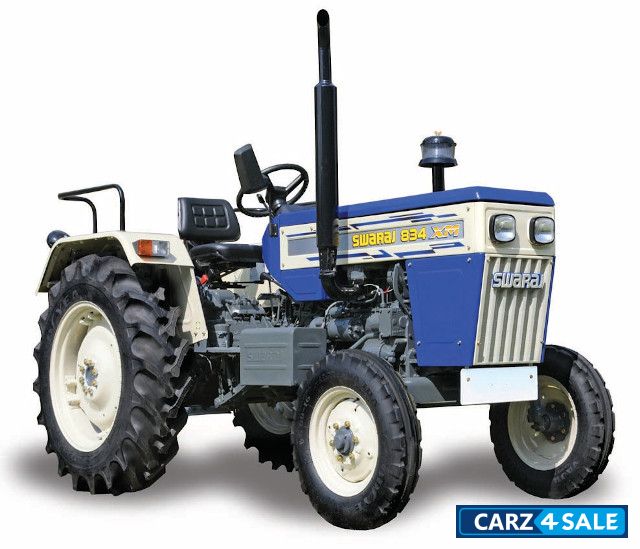

Swaraj 834 XM Tractor price, specs, mileage, colours, photos and reviews

Complete details of 834 XM Tractor Tractor

Rate Swaraj 834 XM Tractor:

3.0/5 (2 votes)

Add To Compare
Write a Review

Swaraj 834 XM Tractor Price

Rs. 4,80,000

Offers for Swaraj 834 XM Tractor

Book a Test Drive through Carz4Sale and we will try to get you the best discount for Swaraj 834 XM Tractor.

For Exciting Offers, Book a Test Drive

Features

- Mobile Cum Carrier Charger
- Diaphragm Type Single Clutch (Dia-280 mm)
- Stabilizers Bar
- Neutral Safety Switch

Similar Tractors

New Holland Excel 5510 Tractor Compare

New Holland 3600-2 Excel Tractor Compare

New Holland 3600-2 TX Super Tractor Compare

New Holland Excel 4710 4WD Tractor Compare

New Holland Excel 4710 2WD Tractor Compare

New Holland 4710 4WD Tractor Compare

Swaraj Dealers

VRS COLONIZERS & INFRADEVELOPERS

VIL AND POST KANERI, RAJATALAB ROAD Uttar Pradesh

Contact Dealer

JAGDISH ENTERPRISES

IN FRONT OF MANDI SAMITI, ETAH ROAD, TUNDLA Uttar Pradesh

Contact Dealer

B.K.C TRACTORS

NEAR NAGAR PANCHAYAT OFFICE, BAUDH NAGAR, TIRWA Uttar Pradesh

Contact Dealer

GOVIND DAS AUTOMOBILES

NEAR BUS STAND, VILLAGE & POST TEHROULI Uttar Pradesh

Contact Dealer

PURVANCHAL TRACTORS

NEAR NAVJEEVAN MISSION SCHOOL, PAKADIYAR PURAB PATTI, TAMKHUI ROAD, TAMKHUI RAJ Uttar Pradesh

Contact Dealer

VIVEK TRACTORS

MAIN ROAD, TALBEHAT Uttar Pradesh

Contact Dealer

More Dealers

View all Swaraj Showrooms

View All Showrooms

Technical Specifications

Vehicle Type	Tractor
Fuel	Diesel
Engine Displacement	2592.00 cc
Engine Details	3 Cylinders, 4 Stroke
Bore x Stroke	100mm x 110mm
Clutch	Single dry disc friction plate - 280 mm dia. (11”)
Fuel System	Direct injection
Maximum Power	30 Ps @ 1800 Rpm
Transmission	No. of Gears : 8 Forward, 2 Reverse speeds Forward : 2.14 to 27.78 Reverse : 2.68 & 10.52

Motor Details
Starter motor & Alternator

Electricals
Battery	12 Volt, 88 Ah

Brakes
Front Brake	Dry Disc type Brakes
Rear Brake	Dry Disc type Brakes

Tyres
Front Tyre	6.00 x 16
Rear Tyre	12.4 x 28 13.6 X 28 (Optional)

Dimensions
Length	3475 mm
Width	1705 mm
Height	2250 mm
Wheelbase	1930 mm
Weight	1845 kg
Ground Clearance	380 mm

Additional Details
Model : RV-30 XM+ 3A Air Cleaner : 3- Stage Oil Bath Type Cooling System : Water Cooled with No loss tank PTO Speed : Standard 1000 rpm PTO Speed : Optional 540 rpm Lifting Capacity : 1000 Kgf at lower link ends. Linkage : 3 point linkage suitable for Category-I&II type implement pins Steering Type : Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator Instruments : Engine rpm cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator Live Hydraulics : A) Position control : To hold lower links at any desired height. B) Automatic draft control :To maintain uniform depth c) Mix Control : For optimum field output

Additional Details

Model : RV-30 XM+ 3A
Air Cleaner : 3- Stage Oil Bath Type
Cooling System : Water Cooled with No loss tank
PTO Speed : Standard 1000 rpm
PTO Speed : Optional 540 rpm
Lifting Capacity : 1000 Kgf at lower link ends.
Linkage : 3 point linkage suitable for Category-I&II type implement pins
Steering Type : Mechanical Steering with Heavy Duty single drop arm for better maneuverability & comfort to operator
Instruments : Engine rpm cum hour meter with direction indicators, Fuel Gauge, Ammeter, and Water Temp. Gauge & Oil Pressure Indicator
Live Hydraulics :
A) Position control : To hold lower links at any desired height.
B) Automatic draft control :To maintain uniform depth
c) Mix Control : For optimum field output
